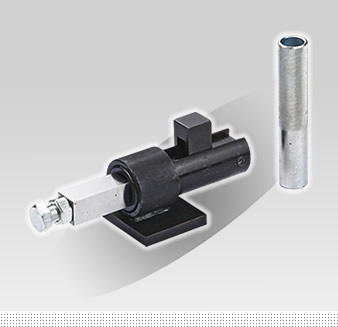

RX-433-2
This series has bigger sizes than RX-432 series
Square plunger is tapped for accepting spindle, spindle is satndard furnished
Flanged base
Push and pull action
Square plunger prevents rotating
Traverse:77mm
Modle
Holding
Pressure
A
B
C
D
E
F
G
H
I
J
K
L
Weight
433-2
2200kg
40
11.2
90.5
25
77.8
1 1/2DEEP
68.3
28.3
150
44.4
77.8
21
3320g
