Toggle Clamp

Push Action

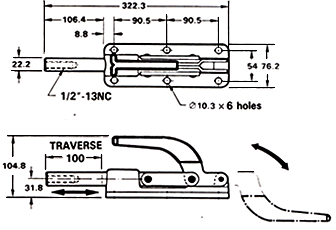

RX-430-1

  • Holding pressure:3400kg
  • Weight:3150g
  • Push and pull action
  • Plunger is tapped for accepting 1/2" 13 NC spindle, spindle is satndard furnished
  • Flanged base is casted from ductile iron
  • Plunger traverse:40mm

RX-421-1 RX-427-1 RX-432-2
RX-422-1 RX-428-1 RX-433-1
RX-423-1 RX-429-1 RX-433-2
RX-424-1 RX-430-1 RX-441-1
RX-425-1 RX-431-1
RX-426-1 RX-432-1
