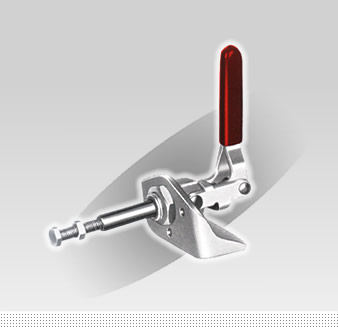

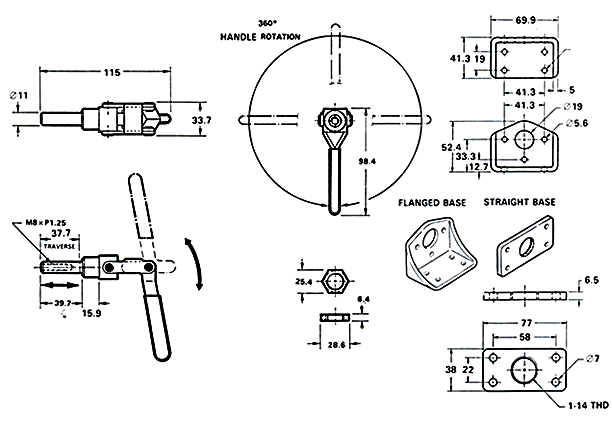

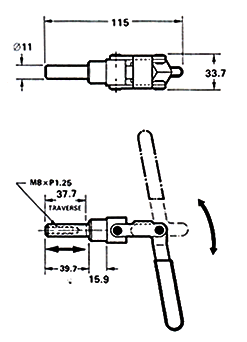

RX-422-1, RX-422-2

  • Plunger push pressure:140kg
  • Weight:260g
  • Designed for pushd and pull action
  • Plunger is tapped for accepting 5/16" spindle,spindle is satndard furnished
  • Flanged base and straight base available upon requst
  • Traverse:38mm,66mm
