Toggle Clamp

Hold Down

(Vertical Handle)



RX-121-1 RX-125-5 RX-132-1
RX-122-1 RX-126-1 RX-133-1
RX-122-2 RX-127-1 RX-134-1
RX-123-1 RX-128-1 RX-621-1
RX-124-1 RX-129-1 RX-631-1
RX-125-1 RX-130-1

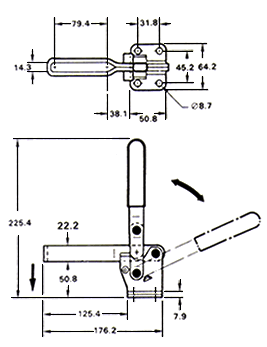

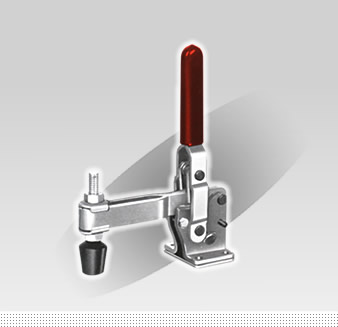

RX-134-1

  • Holding pressure:440kg
  • Weight:1250g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Furnished with neoprene tipped spindle.
    Size 5/8"-11NCx3"

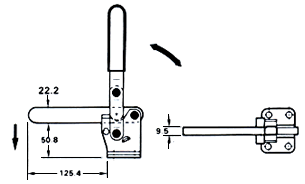

RX-134-2

  • Holding pressure:190kg
  • Weight:370g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Furnished with neoprene tipped spindle.
    Size 5/16"-18NCx2"



RX-134-3

  • Holding pressure:190kg
  • Weight:370g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Furnished with neoprene tipped spindle.
    Size 5/16"-18NCx2"


RX-134-4

  • Holding pressure:190kg
  • Weight:370g
  • "U"bar
  • Flanged base
  • Vertical handle
  • Furnished with neoprene tipped spindle.
    Size 5/16"-18NCx2"
