快速夾鉗
推式
|
|

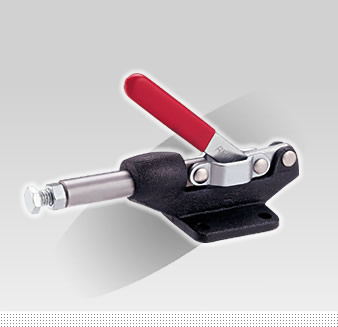

RX-431-1, RX-431-2, RX-431-3
- 夾持力 : 227kg,386kg,680kg
- 重量 : 340g,580g,1480g
- 具推拉功能
- 推桿有螺絲孔，可安裝主軸。主軸為標準附件
- 球墨鑄鐵翼型底座
- 手把移動範圍45°
- 推桿行程 :20mm,40mm,60mm
|
| |
|
|
| 型號 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
| 431-1 |
12.7 |
20.2 |
52.4 |
35 |
8.7 |
41.4 |
8 |
57.2 |
6.7 |
6.4 |
8 |
30.2 |
25.4 |
20.6 |
125.4 |
4.8 |
74.8 |
52.4 |
| 431-2 |
16 |
41.4 |
58.8 |
41.4 |
8.7 |
41.4 |
8 |
57.2 |
8.3 |
8 |
9.5 |
39.7 |
31.8 |
31.8 |
158.8 |
4.8 |
98.4 |
81 |
| 431-3 |
19.2 |
60.4 |
73.2 |
50.8 |
11.1 |
50.8 |
10.3 |
71.4 |
8.3 |
8 |
12.7 |
49.2 |
44.6 |
50.8 |
238.2 |
6.4 |
133.4 |
120.8 |
|
|
 |
